STM32F407ZGT6 Development Board ARM M4 STM32F4 Board Compatibility Multiple Extension
Features:

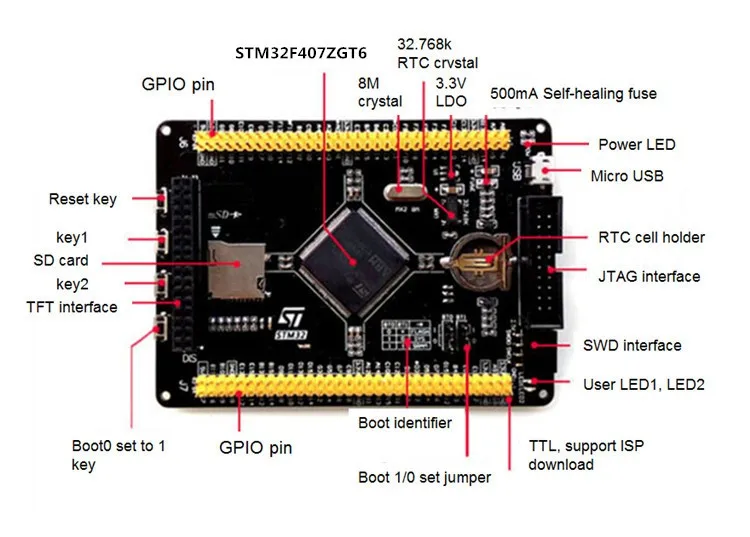

- Main chip: STM32F407ZGT6, 114 GPIO, 1M FLASH, 196K SRAM
- Support multiple ROM extension: reserved EEPROM pad and flash pad, onboard micro-SD card interface , convenient to expand ROM.

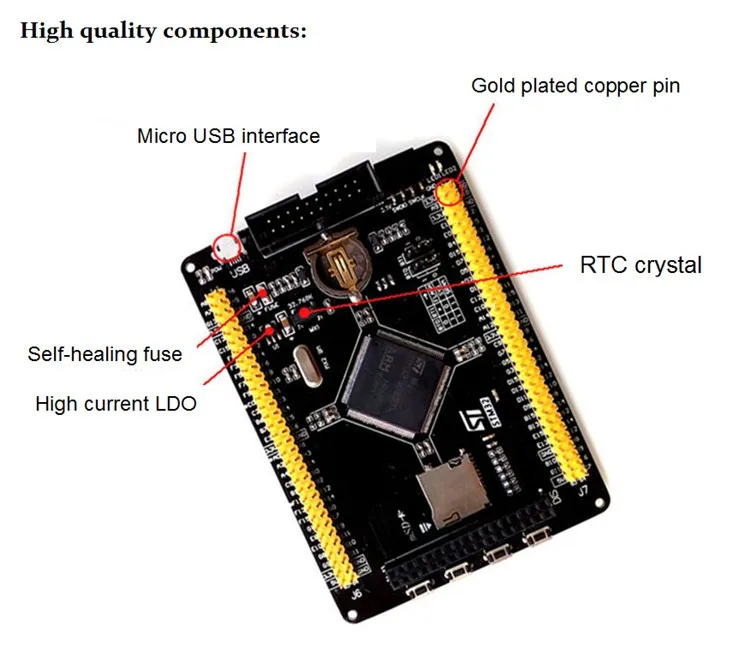

- Simple and neat wiring: Micro USB interface power supply, horizontal SWD interface input.

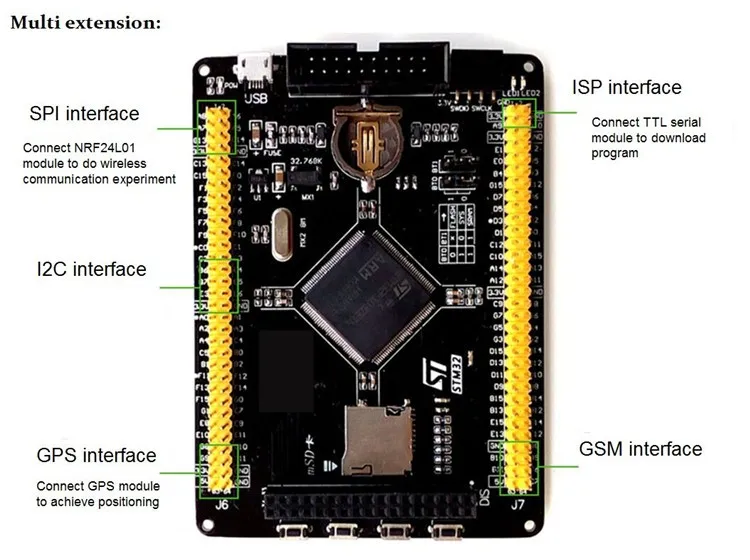

- Lead out all GPIO, free connecting external circuit.
- Onboard SWD and JTAG interface, support STLINK and JLINK download.

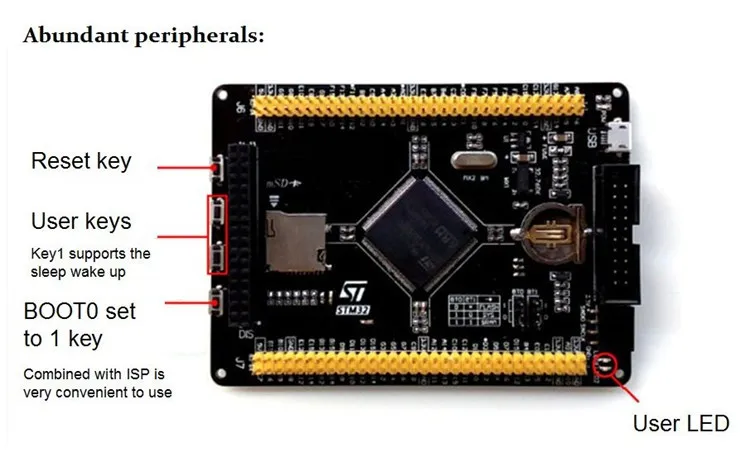

- Onboard BOOT0 config key, support ISP serial download program.
- Onboard RTC cell holder. After installing the battery can provide power maintenance and backup.
- Onboard 8M external crystal, the maximum speed can be doubled to 168M.
- Size: 10.35cm x 7.50cm

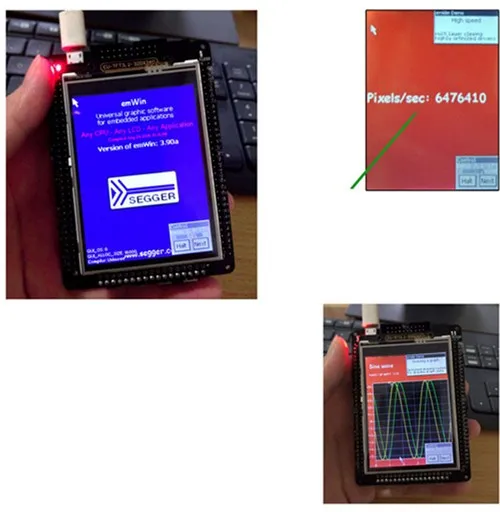

Support Color touch screen TFT:
M4 GUI high speed test, draw about 6470 thousand pixels per second, the speed is 2 times more than M3.
Simulation / Download Interface:

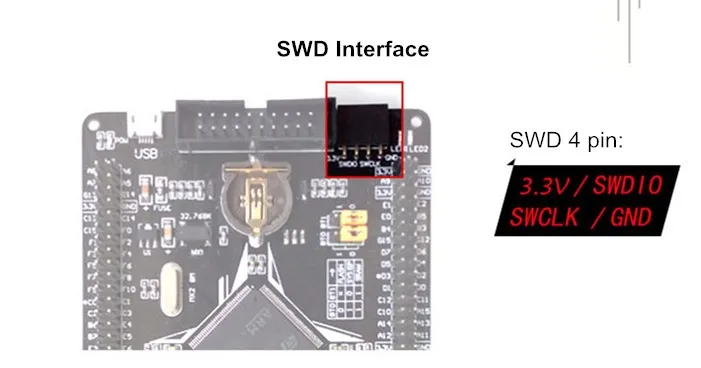

SWD interface: Recommended to use STLINK to download and debug program.

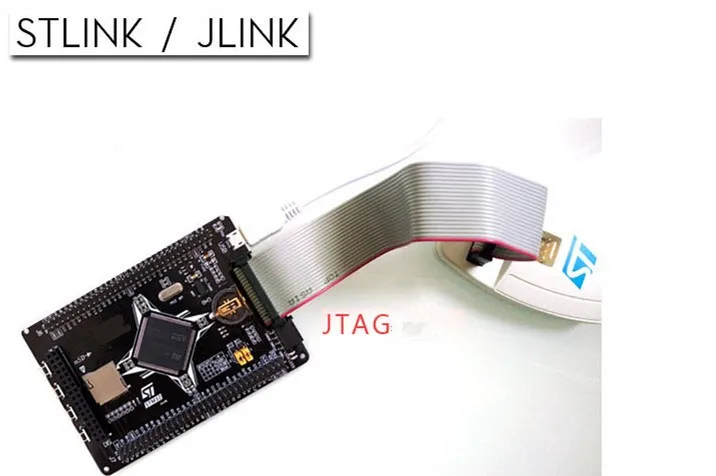

JTAG interface: can use JLINK to download and debug program.

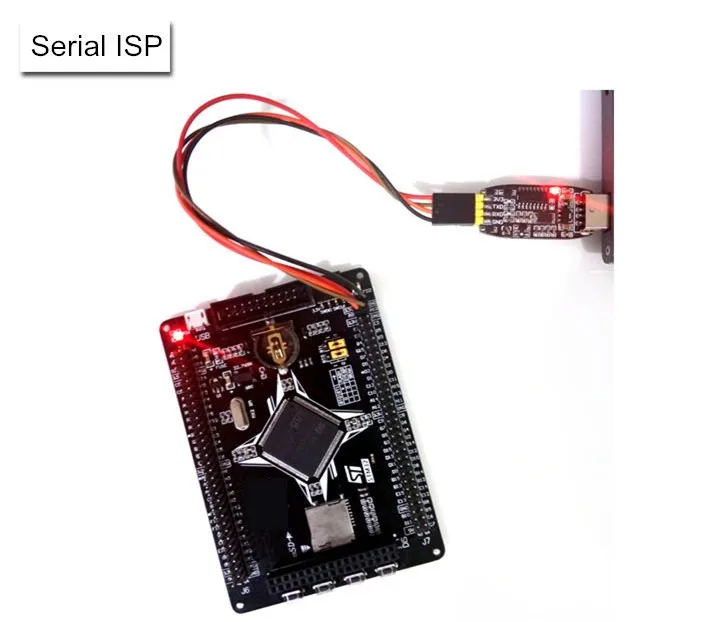

TTL Serial: support TTL serial download program.
Package Included:
1 x STM32F407ZGT6 Development Board
